Enabling HTTP/2 for a site

This post appeared originally in our sysadvent series and has been moved here following the discontinuation of the sysadvent microsite

When we installed the new frontend nodes for our main site, we wanted make use of some technologies that aren’t yet in broad use by our customers. The intention was both to gain more experience with said technologies, and to show that they are ready for production use. HTTP/2 was one of these technologies.

Why use HTTP/2?

HTTP/2 offers several features that improve the load speed of pages. To quote the HTTP/2 FAQ, the new version of the protocol:

• is binary, instead of textual
• is fully multiplexed, instead of ordered and blocking
• can therefore use one connection for parallelism
• uses header compression to reduce overhead
• allows servers to “push” responses proactively into client caches

While the setup on this blog does not make use of the “push” functionality, the rest of the features result in a faster loading site for most clients, as well as fewer connections per second on the server hosting it.

A (very HTTP/2 friendly) demo can be observed at akamai.com/¹. Akamai has also made a video with a lot of observations and comparisons on real-world HTTP/2 use.

Note that HTTP/2 is still a fairly young technology. Some teething issues are to be expected as more sites start using it, uncovering problems with the server implementations in the process. CVE-2016-8740 and CVE-2016-1546 are examples of such issues.

Supported servers

In our case the choice was mainly between Varnish and Nginx. As the HTTP/2 support in Varnish 5.0 is still experimental, we decided to go with Nginx for now. Since Varnish is already a component of the site, we’ll probably switch to that when HTTP/2 becomes fully supported in it.

For a full list of HTTP/2 enabled servers, look at the entries of the HTTP/2 implementations list with “server” or “proxy” in the role column.

Protocol negotiation and libraries

HTTP Protocol negotiation can be done through two protocols, Next Protocol Negotiation (NPN) and it’s successor Application-Layer Protocol Negotiation (ALPN). The latter is the only negotiation protocol supported by HTTP/2, but it’s common for browsers to also support NPN since it was used by SPDY (the precursor of HTTP/2). This support is, however, temporary in the case of chrome (and possibly others).

In other words, if you want to make sure that your server will be HTTP/2 enabled also in the future, verify that it uses a new enough TLS implementation to support ALPN. For daemons using OpenSSL, they need at least version 1.0.2. The ALPN protocol page at Wikipedia has a list of which versions of other libraries have the required support.

How to enable HTTP/2 in Nginx

Nginx has HTTP/2 support in version 1.9.5+. As Ubuntu 16.04 currently has version 1.10.0 in its repositories, we just needed to do an apt install nginx to install it. Ubuntu 16.04 also uses OpenSSL version 1.0.2, so we’ve also got the required ALPN support out of the box.

After installation, the only additional configuration required for HTTP/2 support was to add http2 as a listen directive in the relevant virtual-host file(s) under /etc/nginx/sites-enabled/:

listen [::]:443 default_server ssl http2 ipv6only=off;

Tuning ciphers

The default cipher list in Nginx allows a lot of ciphers/combinations that are quite weak. A good source of sane cipher lists is the Mozilla wiki. We prefer the intermediate level for for a public web like this. To achieve this, we add cipher settings to the same virtual-host file(s) as above:

ssl_protocols             TLSv1 TLSv1.1 TLSv1.2;
ssl_ciphers               "ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-AES128-SHA256:ECDHE-RSA-AES128-SHA256:ECDHE-ECDSA-AES128-SHA:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-SHA:ECDHE-ECDSA-AES256-SHA384:ECDHE-ECDSA-AES256-SHA:ECDHE-RSA-AES256-SHA:DHE-RSA-AES128-SHA256:DHE-RSA-AES128-SHA:DHE-RSA-AES256-SHA256:DHE-RSA-AES256-SHA:ECDHE-ECDSA-DES-CBC3-SHA:ECDHE-RSA-DES-CBC3-SHA:EDH-RSA-DES-CBC3-SHA:AES128-GCM-SHA256:AES256-GCM-SHA384:AES128-SHA256:AES256-SHA256:AES128-SHA:AES256-SHA:DES-CBC3-SHA:!DSS";
ssl_dhparam               /etc/sslcerts/dhparam.pem;
ssl_prefer_server_ciphers on;

The Mozilla wiki has a good explanation of why you need a dhparam file, and its contents.

Some basic testing

A couple of basic tests can be done to verify that the site is now up and running with HTTP/2. First, let’s verify that clients are allowed to negotiate HTTP/2 (or h2 as it’s usually referred to by software). Make sure you’ve got OpenSSL version 1.0.2 or above, as earlier versions do not support ALPN:

$ openssl s_client -connect www.redpill-linpro.com:443 -alpn 'h2' </dev/null 2>&1 | grep ALPN
ALPN protocol: h2

OpenSSL says that we can negotiate an HTTP/2 connection – so far so good. Note that we do not use -nextprotoneg to test, as that would test the NPN protocol instead of the ALPN protocol.

Next we want to try an HTTP/2 request. Most command line clients in Ubuntu 16.04 are still without the required support, but the nghttp project (an HTTP/2 library) also has a client available:

$ sudo apt -y install nghttp2-client
...
$ nghttp --null-out --verbose https://www.redpill-linpro.com
[  0.005] Connected
The negotiated protocol: h2
...

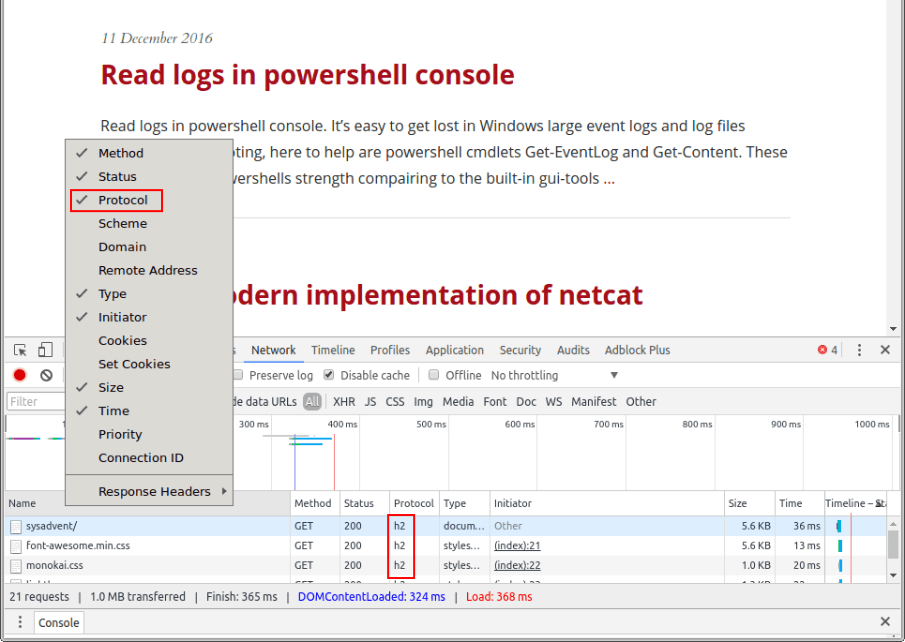

The protocol can also be checked in Chrome, as the Network tab in its developer panel (accessed through <F12>) has a “Protocol” column. Just right-click any of the column titles to display the menu where you can enable it:

All of our test return good results. If they hadn’t, Cloudflare has an excellent blog post about further debugging and testing.

Conformance

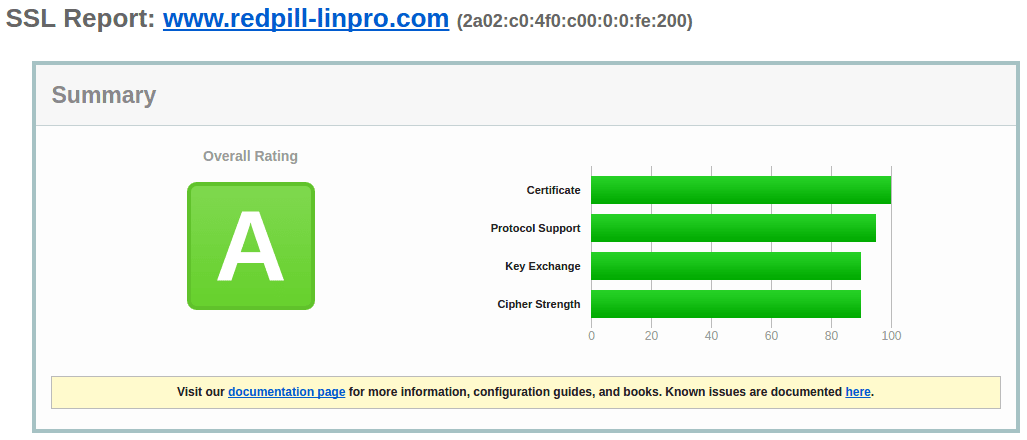

We’ve now ended up with an A rating at ssllabs.com/ssltest, with IE6 on Windows XP and Java 6 being the only clients that fail, and all newer browsers using h2.

The Cipherscan tool mentioned in an earlier blog entry is also quite happy:

$ ./analyze.py -t www.redpill-linpro.com:443 -l intermediate
www.redpill-linpro.com:443 has intermediate ssl/tls
and complies with the 'intermediate' level

Changes needed to match the intermediate level:
* consider using DHE of at least 2048bits and ECC of at least 256bits
* consider enabling OCSP Stapling

We haven’t enabled OCSP stapling (yet), and the DHE message is a false positive as we’ve actually got a 4Kb DHE. The scan does, however, confirm that the cipher suite is good.

Result

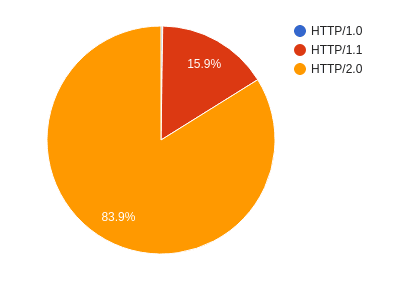

Since most web browsers have fully supported HTTP/2 for a while now, the observed protocol usage for December is pretty much as expected:

HTTP/1.0 is only at 0.24%, making it almost invisible in the chart. It almost exclusively consists of crawlers and bots. The bulk of HTTP/1.1 also seems to be crawlers/bots, with a decent chunk of older mobile devices that haven’t had browser updates in a while thrown into the mix.

Update

• 2024-01-29 Fixed dead link to akamai.com/demo.
